HXF 298 PET Plastic Injection Molding Equipment
Model: HXF 298
Description
As one of professional manufacturers of PET plastic injection molding equipment in China, we are providing different kinds of Injection Molding Machines suitable for various applications. PET plastic injection molding equipment is used for PET bottle performs or PET material performing according to the latest molding technologies. The benefits of our HXF 298 PET plastic injection molding equipment are energy-savings, consumption-reducing and highly-efficient.
PET Plastic Injection Molding Equipment
Technical parameters:
| MODEL: HXF 298PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 75 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 1502 | |
| INJECTION WEIGHT(PS) | g | 1592 | |
| INJECTION PRESSURE | MPa | 137 | |
| INJECTION RATE | g/s | 376 | |
| PLASTICIZING CAPACITY | g/s | 56 | |
| SCREW SPEED | rpm | 160 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 2980 |
| OPEN STROKE | mm | 600 | |
| MAX. MOULD | mm | 690 | |
| MIN. MOULD | mm | 230 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 605×590 | |
| EJECTOR FORCE | KN | 125 | |
| EJECTOR STROKE | KN | 150 | |
| EJECTOR NUMBER | n | 13 | |
| OTHERS | PUMP PRESSURE | MPa | 13 |
| MOTOR POWER | KW | 37/37 | |
| HEATING POWER | KW | 24.73 | |
| MACHINE DIMENSION (L×W×H) | m | 6.5×1.7×2.08 | |
| MACHINE WEIGHT | t | 9 | |
| OIL TANK CAPACITY | L | 415 | |

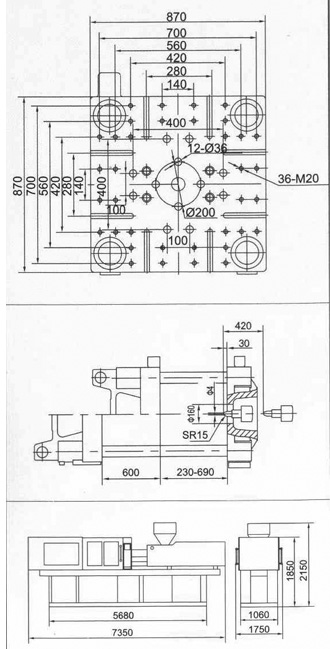

PET Plastic Injection Molding Equipment Dimensions:
Advantages of PET Plastic Injection Molding Equipment (HXF 298)
This HXF PET plastic injection molding equipment comes with advantage of energy-savings, professional design, top quality and competitive price.
Specifications of HXF 298 PET Plastic Injection Molding equipment
1. The screw diameter of PET plastic injection molding equipment is 65 and L/D ratio is 25.
2. The injection capacity of our PET PET plastic injection molding equipment is 830 cm3.
3. The HXF PET plastic injection molding equipment features extended machine framework, enlarged space between tie bars, mold opening stroke, mold thickness, and ejection stroke.
4. The maximum mold height of PET plastic injection molding equipment is 600mm; the minimum mold height is 230mm.
5. PET Dehumidifying dryer selected for PET resin's special demands of removing moisture.
6. The HXF PET plastic injection molding equipment is suitable for both varied pump and standard pump.
7. This PET plastic injection molding equipment comes with balanced double cylinder injection system that ensures smooth and stable operation.
