HXF 410 PET Plastic Injection Molder
Description
We are leading and professional manufactures of PET plastic injection molder in China, including the HXF 410 model of PET plastic injection molder. This HXF 410 PET plastic injection molder can be used for producing plastic objects and hollow glass, different bottles in large quantities. Special screw designs are made for preform production of this HXF 410 model of PET plastic injection molder for high quality of melted PET. We are leading and professional manufactures of PET plastic injection molder in China, including the HXF 410 model of PET plastic injection molder. This HXF 410 PET plastic injection molder can be used for producing plastic objects and hollow glass, different bottles in large quantities. Special screw designs are made for preform production of this HXF 410 model of PET plastic injection molder for high quality of melted PET.
HXF 410 PET Plastic Injection Molder
Model: HXF 410PET
Technical Parameters:
| MODEL: HXF 410PET | |||
| TECHNICAL PARAMETER TABLE | |||
| INJECTION UNIT | SCREW DIAMETER | mm | 85 |
| SCREW L/D RATIO | L/D | 24 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 2099 | |
| INJECTION WEIGHT(PS) | g | 2225 | |
| INJECTION PRESSURE | MPa | 135 | |
| INJECTION RATE | g/s | 503 | |
| PLASTICIZING CAPACITY | g/s | 79 | |
| SCREW SPEED | rpm | 160 | |
| CLAMPING UNIT | CLAMP FORCE | KN | 4100 |
| OPEN STROKE | mm | 700 | |
| MAX. MOULD | mm | 800 | |
| MIN. MOULD | mm | 280 | |
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 770×720 | |
| EJECTOR FORCE | KN | 180 | |
| EJECTOR STROKE | KN | 180 | |
| EJECTOR NUMBER | n | 13 | |
| OTHERS | PUMP PRESSURE | MPa | 16 |
| MOTOR POWER | KW | 45/30+23 | |
| HEATING POWER | KW | 32.85 | |
| MACHINE DIMENSION (L×W×H) | m | 8.21*1.96*2.35 | |
| MACHINE WEIGHT | t | 14.2 | |
| OIL TANK CAPACITY | L | 687 | |

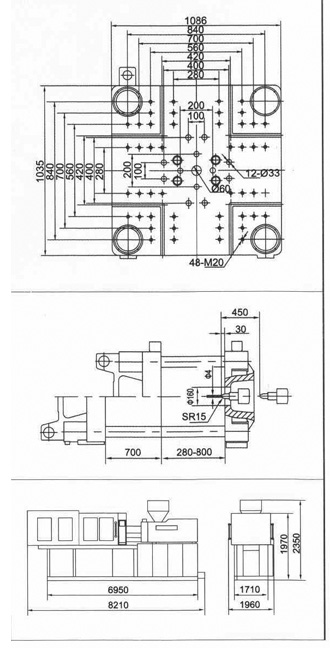

HXF 410 PET Plastic Injection Molder Dimensions
Advantage of HXF 410 PET Plastic Injection Molder
The advantages of PET plastic injection molder include high efficiency, energy-savings and competitive pricing.
Features of HXF 410 PET Plastic Injection Molder
1. These PET plastic injection molders are designed with special screw L/D ratio for PET preform molding. The screw diameter of model HXF 406 is 80 and L/D ratio is 25.
2. This HXF 410 PET Plastic Injection Molder has injection capacity of 1859 cm3.
3. The HXF 410 PET Plastic Injection Molder features extended machine framework, enlarged space between tie bars, mold opening stroke, mold thickness, and ejection stroke.
4. PET plastic injection molders are with high precision pressure gauges.
5. The maximum mold height is 800mm; the minimum mold height is 280mm.
6. The HXF 410 PET Plastic Injection Molder has muti-stage speed for mold open and close, which can also be adjusted.
