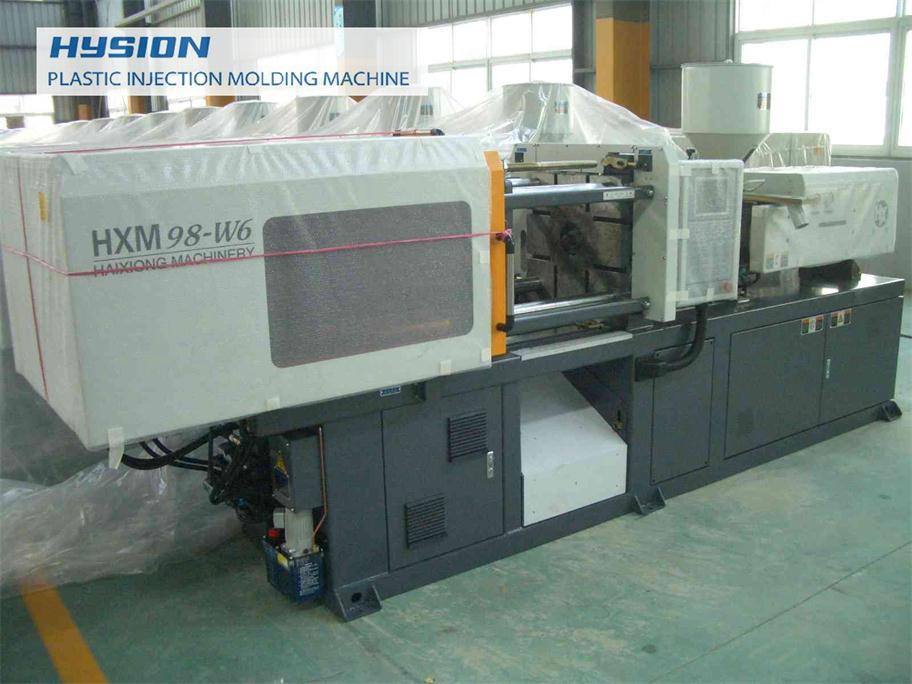

HX(*) 98 Injection Molding Machines
Description
Hydraulic injection molding machine is the most widely applied among all injection molding machines at present. Our HX 98 plastic injection moulding equipment (hydraulic) has achieved great development, from the original fixed displacement pump system, to proportional variable displacement pump system and closed-loop variable displacement pump system. Today, the latest servo-motor-driven hydraulic pump system has further promoted the hydraulic driving technology: from variable tilting plate control to rotational speed control; from general AC asynchronous motor to AC servo motor drive; from analog control to digital control.
Advantages of HX 98 Hydraulic Injection Molding Machine
1. Featured with energy saving and high precision, HX 98 injection molding machine highlights HYSION’s combination of excellent design capability and international advanced variable pump control technology.
2. Highly sensitive variable pump is adopted; besides, the hydraulic flow and pressure is controlled and adjusted by computer according to practical needs. It is characterized by obvious energy saving, faster response and smaller action impact.
3. HX 98 hydraulic injection molding machine is equipped with precise bypass filter, such as to ensure long-time oil cleanliness and improve working reliability. Further more, it can prolong working life of the oil line system, reduce maintenance frequency and cost.
Parameters of HX 98 Hydraulic Injection Molding Machine :
| MODEL:HX(*)98/330 | ||||||
| TECHNICAL PARAMETER TABLE | A | B | C | D | ||
| INJECTION UNIT | SCREW DIAMETER | mm | 32 | 35 | 38 | 40 |
| SCREW L/D RATIO | L/D | 24 | 22 | 20.2 | 19.2 | |
| INJECTION CAPACITY (THEORETICAL) | cm3 | 128 | 154 | 181 | 200 | |
| INJECTION WEIGHT(PS) | g | 116 | 140 | 164 | 182 | |
| Oz | 4 | 4.9 | 5.7 | 6.4 | ||
| INJECTION PRESSURE | MPa | 262 | 219 | 185 | 168 | |
| INJECTION RATE | g/s | 71 | 85 | 101 | 111 | |
| PLASTICIZING CAPACITY | g/s | 10 | 11 | 13 | 17 | |
| SCREW SPEED | rpm | 200 | ||||
| CLAMPING UNIT | CLAMP FORCE | KN | 980 | |||
| OPEN STROKE | mm | 315 | ||||
| MAX. MOULD | mm | 390 | ||||
| MIN. MOULD | mm | 150 | ||||
| SPACE BWTWEEN TIE-BARS (W×H) | mm | 360×340 | ||||
| EJECTOR FORCE | KN | 45 | ||||
| EJECTOR STROKE | KN | 100 | ||||
| EJECTOR NUMBER | n | 5 | ||||
| OTHERS | PUMP PRESSURE | MPa | 16 | |||
| MOTOR POWER | KW | 11/11 | ||||
| HEATING POWER | KW | 8.2 | ||||
| MACHINE DIMENSION (L×W×H) | m | 4.16×1.15×1.82 | ||||
| MACHINE WEIGHT | t | 2.7 | ||||
| OIL TANK CAPACITY | L | 203 | ||||
Mold Plate Dimension:
HYSION has been recognized as the one of top-quality plastic injection molding machine manufactures in China. The company is in possession of more than one hundred sets of high precision equipments and horizontal/vertical processing centers with an annual output of more than 3,000 sets of plastic machines, including the hydraulic injection molding machines.
